Guide for Advanced Search for Magento 2

Let customers conveniently search Magento 2 products by names. Optimize quick search window according to users’ needs and customize auto-complete popup display to make searching easy-to-follow.

• Enhance search results popup
• Add handy tabs to navigate the results
• Display popular and recent searches
• Customize search window design
• Show ‘View All’ link and ‘Add to Cart’ button
• Analyze customers’ activity via Search Analytics dashboard
• Rest API support
• Block spam requests and bot attacks

To configure the extension settings, go to Admin Panel → Stores → Configuration → Amasty Extensions → Advanced Search.

Enable Fullscreen Mode - Set this setting to 'Yes' to enable the fullscreen mode of the autocomplete popup.

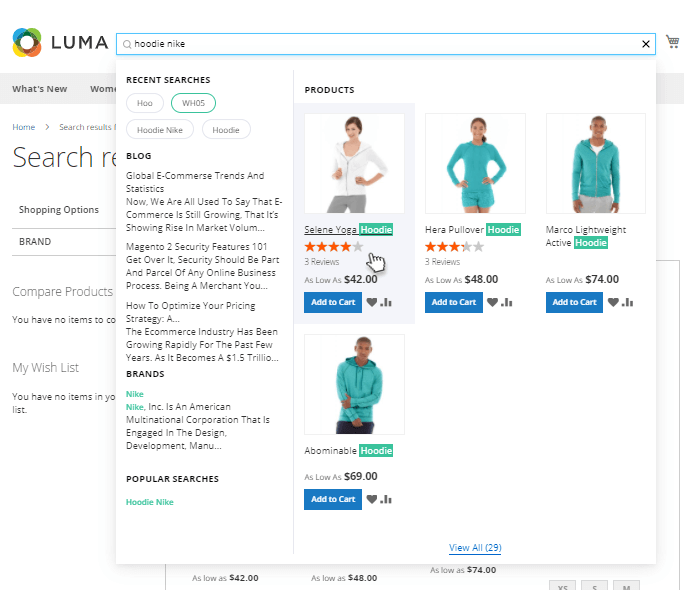

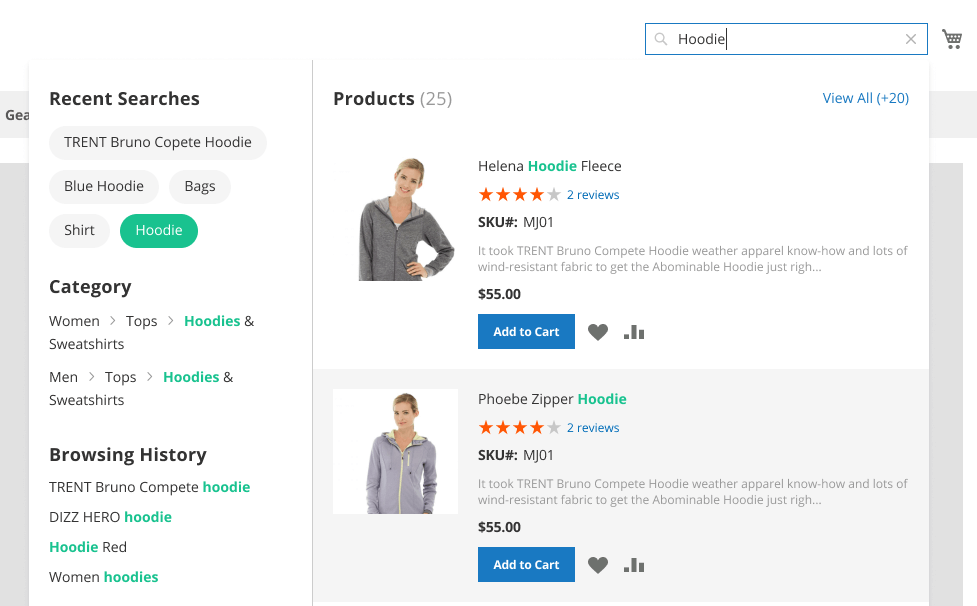

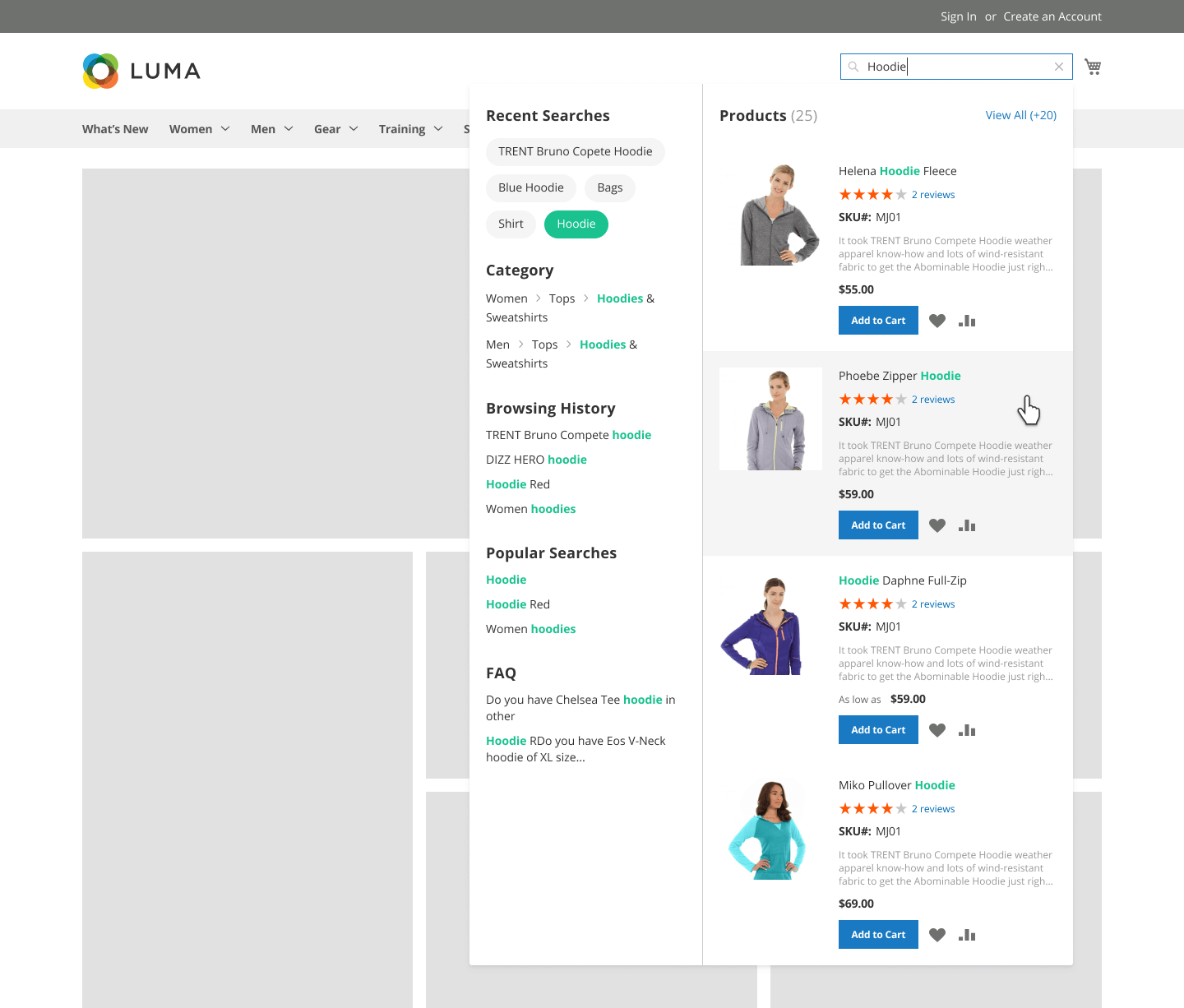

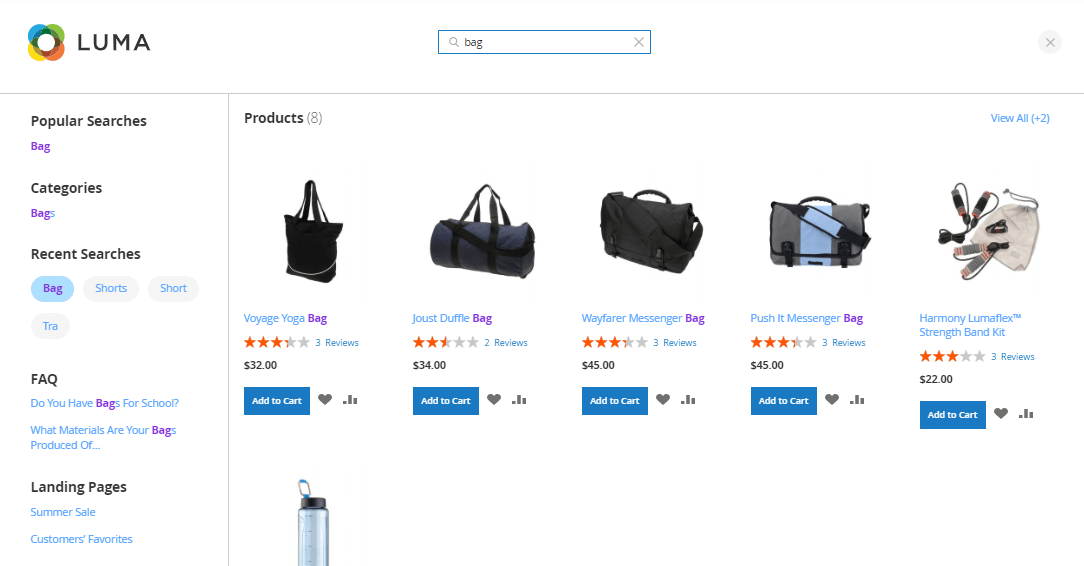

See the example of the fullscreen mode on the frontend:

Popup width (px) - indicates the width of the autocomplete popup window to make it fit in with other page elements. The recommended value for the horizontal view is 900. To get the vertical view, please enter 700 and lower.

Search Field Width - Choose the 'Default' option to keep the original size of the search field during the searching process or enable the 'Dynamic' (based on popup width).

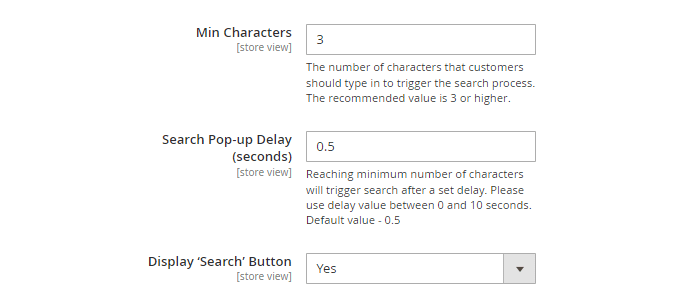

Min Characters - specify the minimal number of characters that customers should type in to trigger the search process. By default, the number is three.

Search Pop-up Delay (seconds) - Reaching minimum number of characters will trigger search after a set delay. Please use delay value between 0 and 10 seconds. The default value is '0.5'.

Display ‘Search’ Button - Set 'Yes' to display the 'Search' button near the search field.

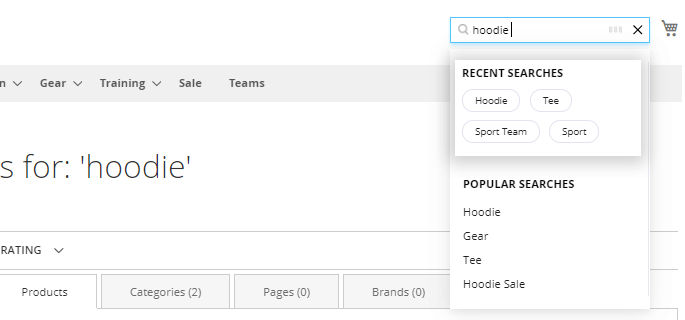

See how it looks on the frontend (both variants):

Enable Redirect from 404 to Search Results - If the option is enabled, when navigating to a broken URL or a non-existing page, a customer will be redirected to the store search results page instead of the '404 Not Found' page.

Save Search Term - Set 'Yes' to save search term in the bar after going to the search results page.

Custom URL Key for Default Search Results Page - enable to set SEO-friendly short URLs. URL will look 'search/yellow' instead of 'catalogsearch/results/q=yellow'.

Search Results Page URL Key - specify the URL alias for the search results' page.Please do not use 'catalogsearch' as URL Key value.

Enable Tabs on the Search Result Page - set to 'Yes' to enable the tabs that sort search results by Category, CMS, and Landing on the search results page.

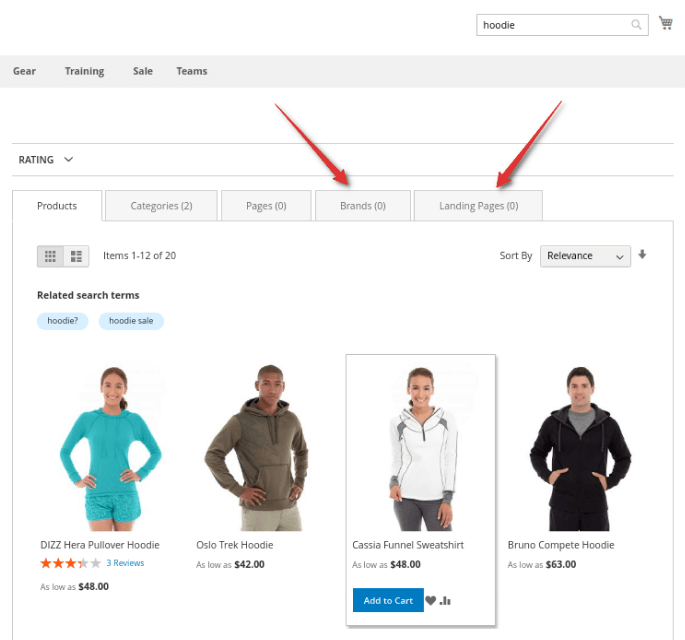

See on the image below how the tabs will look like if other extensions compatible to the Elastic Search by Amasty are also installed. These two extra tabs on the image become available if the Amasty Landing Pages for Magento 2 and Amasty Improved Layered Navigation for Magento 2 are installed. Some other extensions will add other tabs to your Magento quick search tool.

Enable Indexation for Autocomplete popup - Set 'Yes' to speed up autocomplete popup performance. Please note, the reindex will take longer. This feature comes with the Amasty Elastic Search extension only.

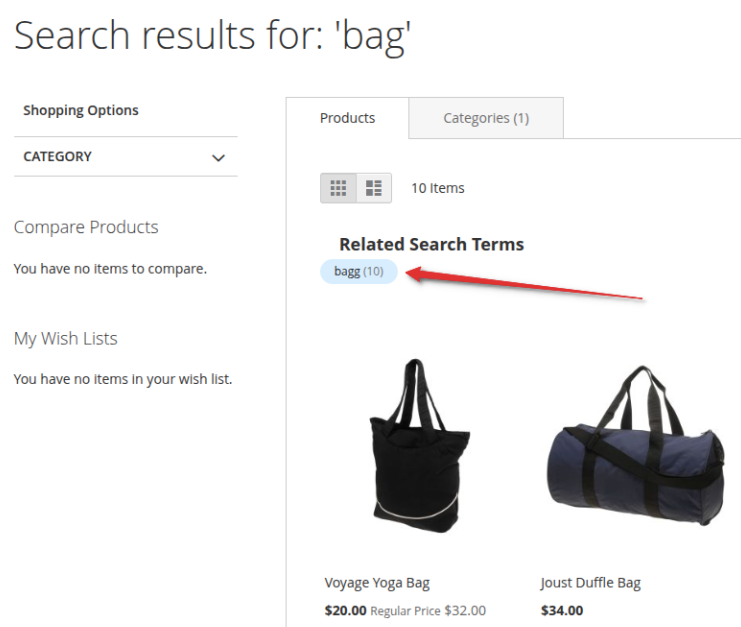

Show Related Search Queries in Search Results - this option helps customers to get relevant results anyway if it's enabled. Choose one mode of the related search results display from the three available options:

• disable ('No, Disabled');
• enable permanently ('Yes, Show Always');
• enable only for a narrow case ('Yes, Show Only when search returns 0 results').

Show Related Search Queries Result Numbers - enable or disable showing related search queries result numbers.

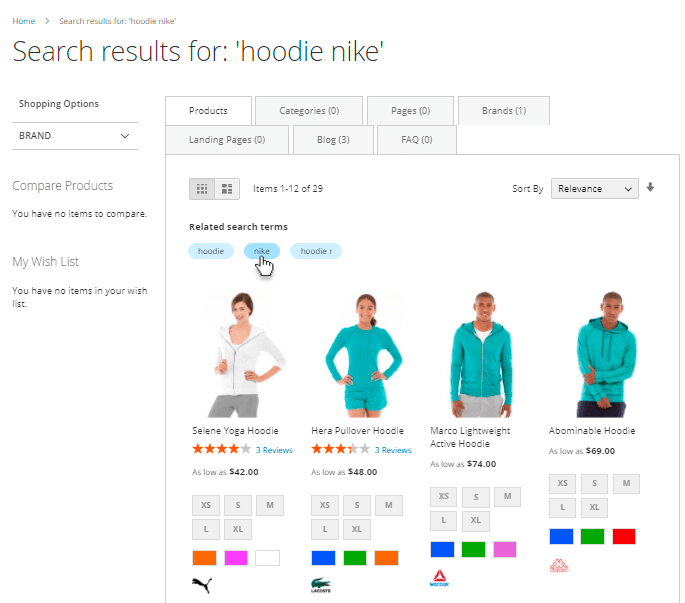

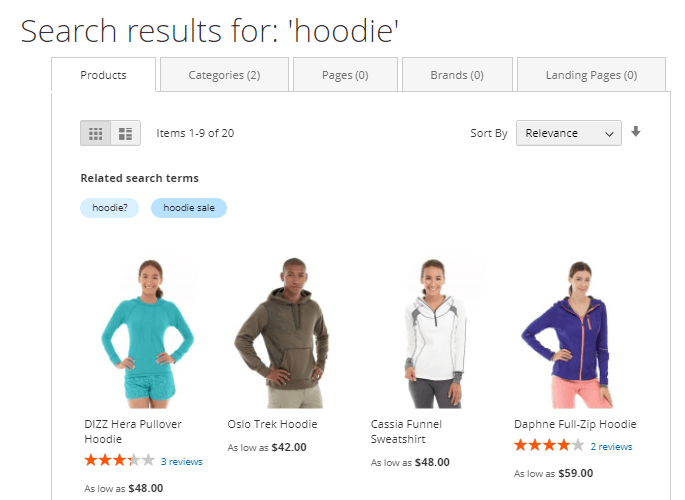

A front-end sample of tabs:

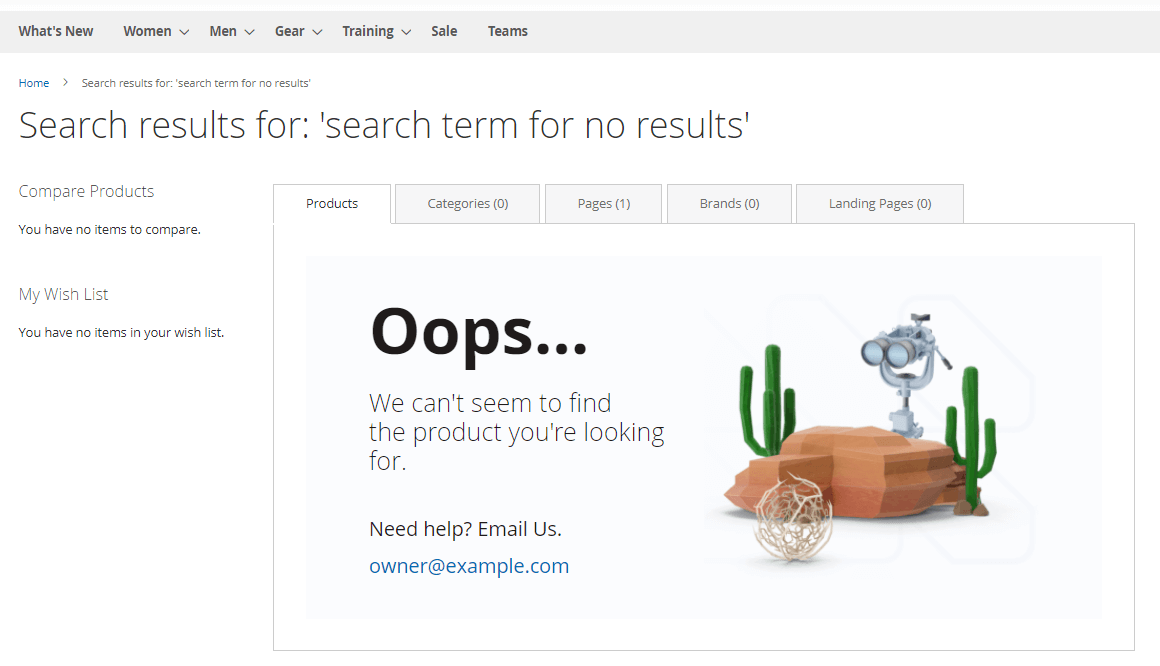

Replace Empty Search Result Message with CMS Block - Choose 'No' from the dropdown if you want the zero search results page to remain empty. Or just pick up any CMS block from the list of your blocks to be displayed in case there are no search results matching the search term.

Old Search Requests Auto-Cleaning - Set to 'Yes' in order to clear the data from the amasty_xsearch_users_search table. Please consider, that Search Analytics, Recent Activity and Most Wanted reports use this data. Therefore, enabling the auto-cleaning feature can affect analytics.

Auto-Cleaning Period in Days - Here you can specify the period for which you want to auto-clean the data from the amasty_xsearch_users_search table.

With the Advanced Search extension, you can block IP addresses that send lots of spam requests. This helps prevent your databases from cluttering with unnecessary entries. The functionality is available as part of an active product subscription or support subscription.

Block Requests from One IP Address - set to 'Yes' to enable the option. In such a case The IP addresses will be blocked according to the conditions set below: exceeding the number of requests for the specified period of time.

Requests Number - set the number of requests.

Period in Minutes - set the period in minutes.

If more than the specified number of requests were sent from one IP address during the specified period, then the IP address will be blocked until the set period of time has elapsed since the last request.

You can include any available product attributes in the search algorithm. For each attribute, you can set a priority (weight).

Click Add to create a new attribute. Use the bin icon in the Action column to delete attributes in one click.

If there is a color attribute with weight 10 and description attribute with weight 5, and the query is red, search results will be more visually relevant, because the algorithm will choose color attribute prior to the words in description. You'll also see in your Magento 2 Advanced search results such configurable products that have simple ones with the relevant attribute (e.g. like the tee with the product option 'red color').

Expand this tab to configure products display in a popup window.

Enabled - set to 'Yes' to enable search in products and display search results in the autocomplete popup.

Pop-Up Display - Choose one of the popup display modes from the dropdown.

* Grid view

• List view

Title - customize the title for the products block.

Position - specify products block position in the popup. This setting is ignored for the horizontal popup window.

Max Results - set the max number of displayed results.

Name Length - indicate the max number of characters of a product name that will be displayed in a popup window.

Short Description Length - set the number of characters for a product short description to be shown in a search window.

Show SKU - Enable this setting to show thee SKU highlighted in the search autocomplete popup.

Show Reviews - Enable reviews display in the autocomplete popup to help customers make the purchase decision much faster.

Enable 'Add to Cart' button - Set to 'Yes' to show Add to cart button in the popup to let customers purchase necessary products right away.

Redirect to Product Page - enable this option to redirect in case there is only one search result available.

Show 'Out of Stock' Products Last - enable a feature to place the out-of-stock items last in the search results.

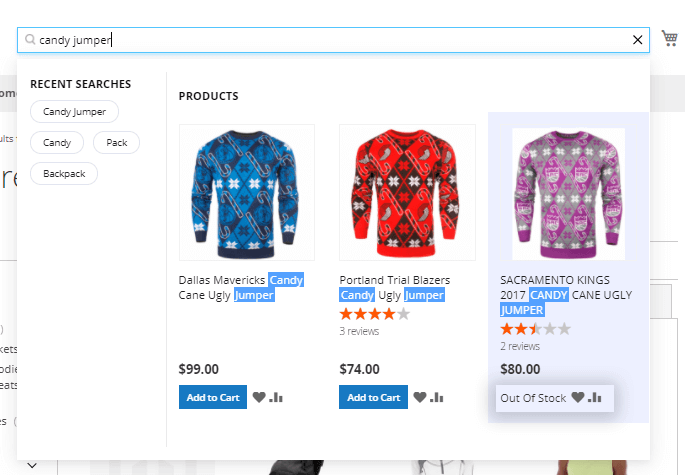

Out-of-stock items displayed last in the search results, a sample.

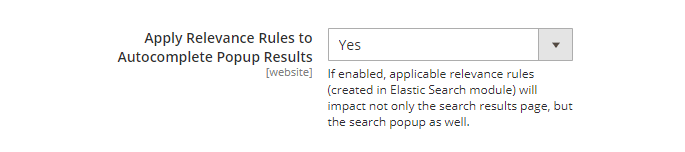

Apply Relevance Rules to Autocomplete Popup Results - Set 'Yes' to apply Relevance Rules to search autocomplete popup results.

To adjust the settings for multi-store search please go to Stores → Configuration → Amasty Extensions → Advanced Search → Products → Multi-Store Search. (Note: this functionality is available as part of an active product subscription or support subscription)

Enabled - Set to 'Yes' to enable multi-store search.

Stores - Select the stores among which the search will be conducted.

Title - Specify any custom title for the 'Multi-Search' block.

Position - In this field, you can specify the position (display order) of the 'Multi-Search' block within the search autocomplete popup.

Max Results - Here you can set the maximal number of results from the multi-search that will be visible in the popup. Or you can just use the system value which is 4 (four).

See the example of how 'Multi-Search' block may look on the frontend:

By default, the advanced search bar is located at the top right corner of the screen, near the shopping cart. But using widgets you can overcome Magento limitations and place the search bar anywhere you need all through the store, like on a sidebar, in the footer, on the CMS pages, and even in Customer Account.

There are two ways of how to configure some non-trivial location for the search bar:

1. configure the widget and specify 'Layout Updates';
2. configure the widget, configure a custom block with it, and then use this block (for example, on a CMS page).

For using the first way, please navigate to Content → Widgets and click on the 'Add Widget' button. Choose the relevant theme to be applied for this widget and the widget type 'Amasty Search Field'.

Specify widget title, needed store views, and the widget sort order.

First, please choose if you want to embed your widget on Categories (anchor or non-anchor), Products (depending on the product type), or Generic Pages. Depending on that choice you'll see the available containers for that type of a store page.

As per products and categories you can choose whether to display the widget on all store product/category pages in bulk or on the specific only.

As per Generic pages, there's the choice from three options, depending on which you'll see the unique set of the available containers:

• All Pages;
• Specified Page;
• Page Layouts.

When you're ready with all configurations, please refresh the page where you're expecting to see the widget and try flushing Magento Cache ('System → Cache Management → Flush Magento Cache') to see the result on the frontend immediately.

For the second way of locating the search bar anywhere else than the default please create the 'Amasty Search Field' widget first and then please go to 'Content → Blocks' to integrate that widget on some of the existing blocks or for creating new.

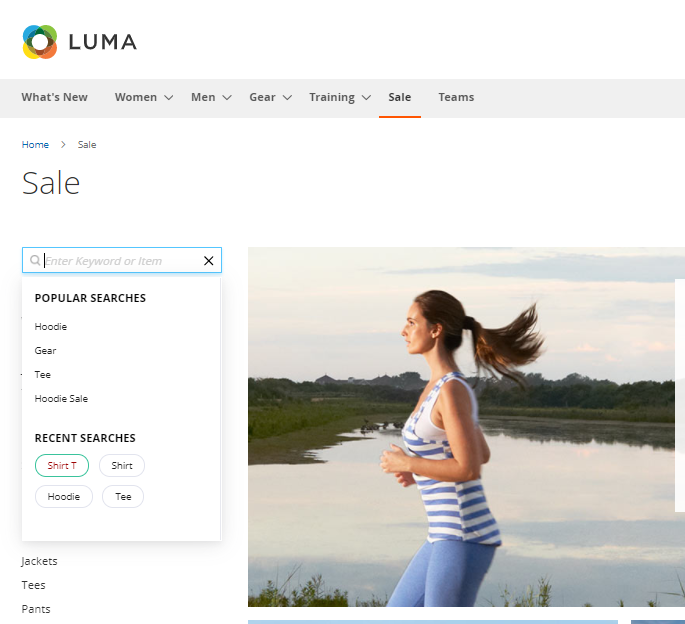

See the example of how this widget looks on the frontend (sidebar category menu):

Extend the search popup with additional sections.

Enabled - enable the display of the Popular Searches block.

Show on First Click - set the option to Yes to let customers see the Popular Searches block in the autocomplete popup once they click on the quick search field.

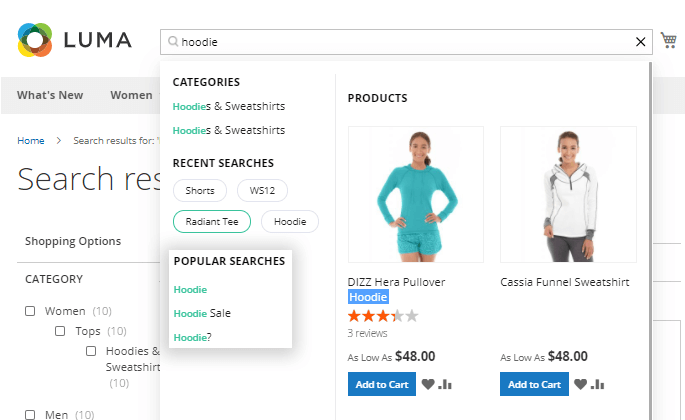

A sample

Title - specify the title of the block.

Position - set the position for the Popular searches block.

Max Results - set the maximal number of popular search results that will be displayed in the search autocomplete popup.

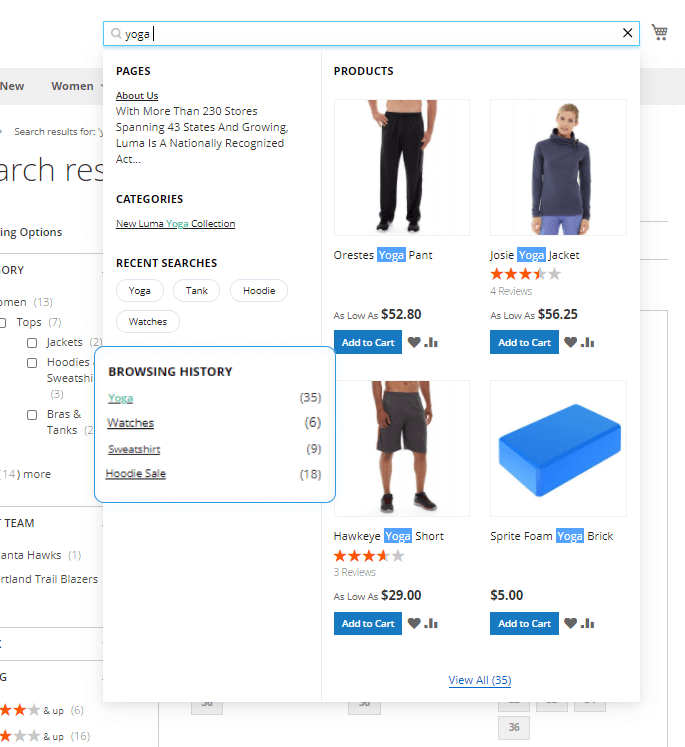

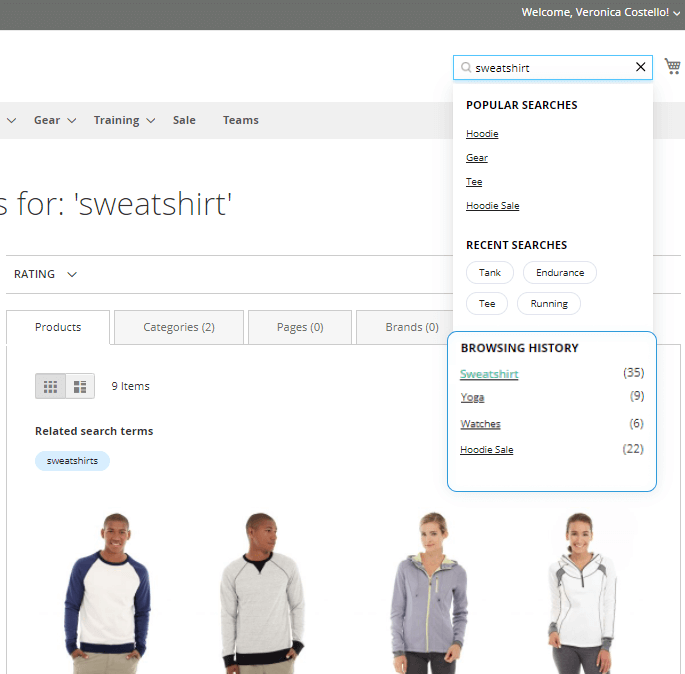

Enabled - Set this setting to 'Yes' to allow the logged-in customers to see their latest search queries in the autocomplete popup.

Show on First Click - Set this option to 'Yes' to enable showing the 'Browsing History' block at the first user's click in a popup.

Title - In this field, you can specify any custom title for the 'Browsing History' block.

Position - In this field, you can specify the position (display order) of the 'Browsing History' block within the search autocomplete popup.

Max Results - Here you can set the maximal number of results from the browsing history that will be visible in the popup. Or you can just use the system value which is 4 (four).

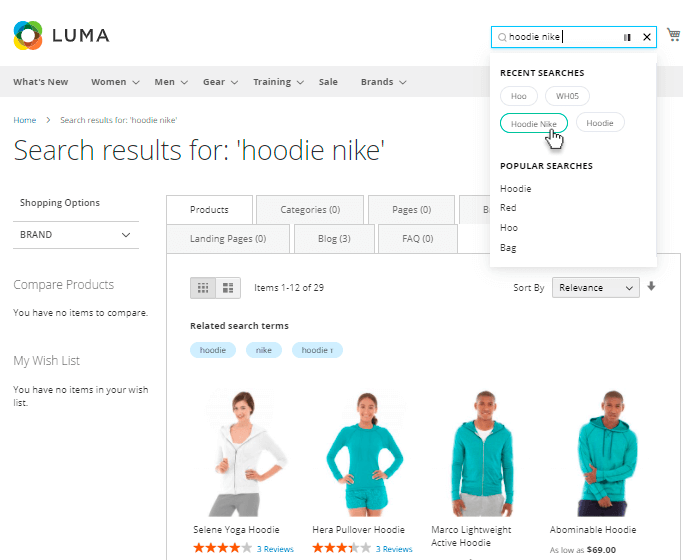

Enabled - select Yes to display the Recent Searches block.

Show on First Click - set the option to Yes to let customers see the Recent Searches block in the autocomplete popup once they click on the quick search field.

Specify the Title, Position and Max Results to be displayed.

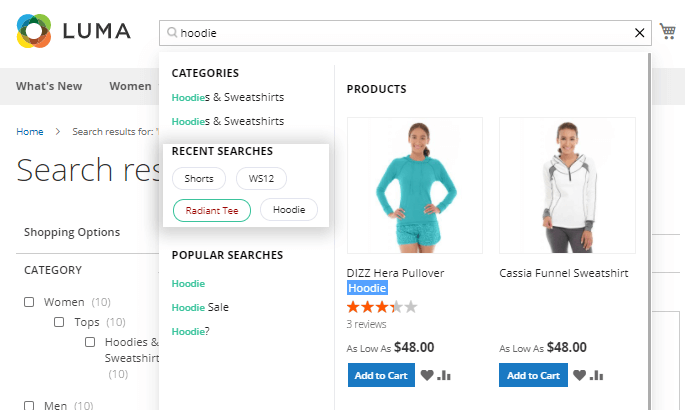

Display Recent Searches in a pop-up

Enabled - set to Yes to enable search by blog pages and to display a blog section in the search window popup to help store visitors find the required content throughout your corporate blog.

Title - input a name for the section in the search popup, where the blog results will be displayed.

Also specify the Position, Max Results.

Set Content Heading Length and Content Length to be displayed to make your search autocomplete window look informative and clear.

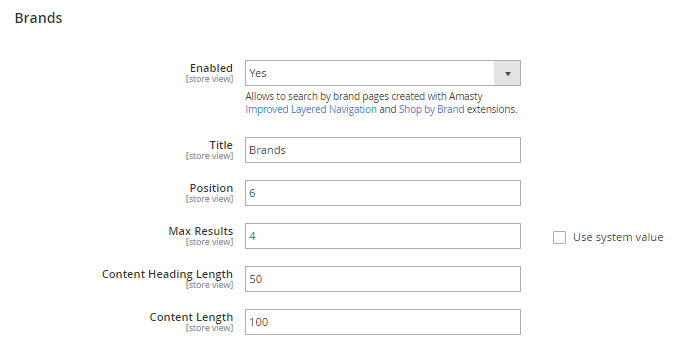

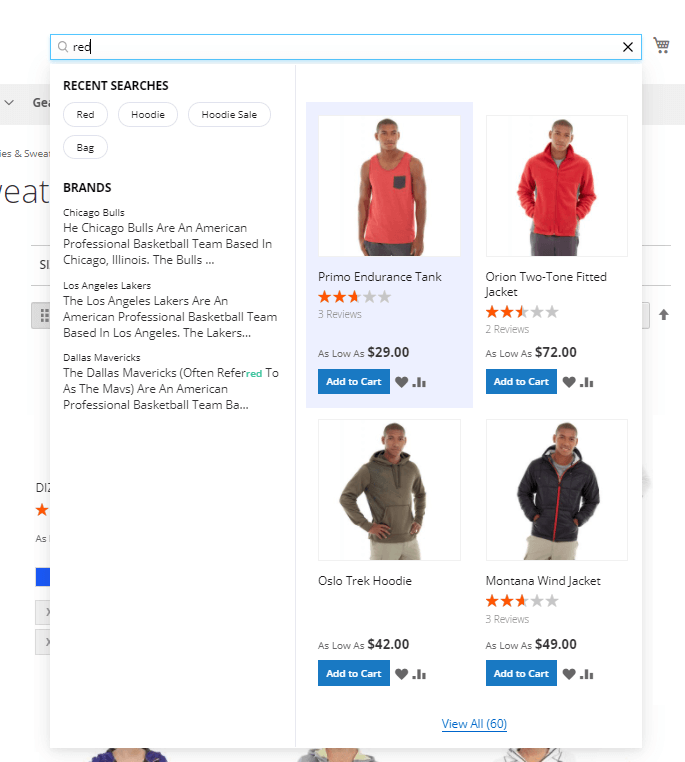

Enable to display a Brand section in the search window popup.

Specify the Title, Position, Max Results, Content Heading Length and Content Length for Brands block.

Enable the option to let the extension search among category attributes and display the results in the autocomplete popup.

Specify Categories block Title, Position and the max number of displayed Results.

Name Length - indicate the number of characters of a category title that will be displayed in a popup window.

Description Length - set the number of characters for a product short description to be shown.

Display Full Category Path - set to Yes to show the full path to the results displayed in the popup.

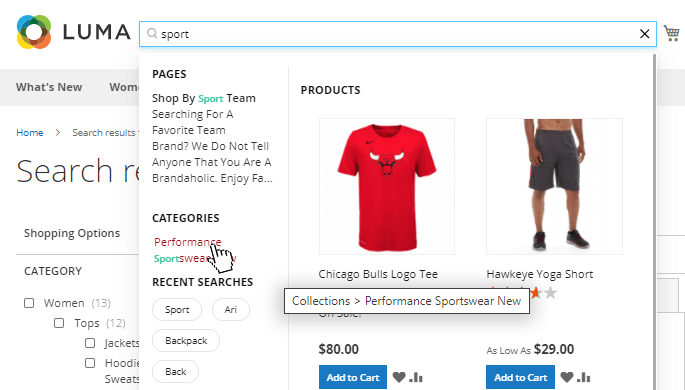

When mouse hover over a category link, the directory levels are displayed.

Exclude Categories - here you can select the categories that you want to exclude from the search via the popup.

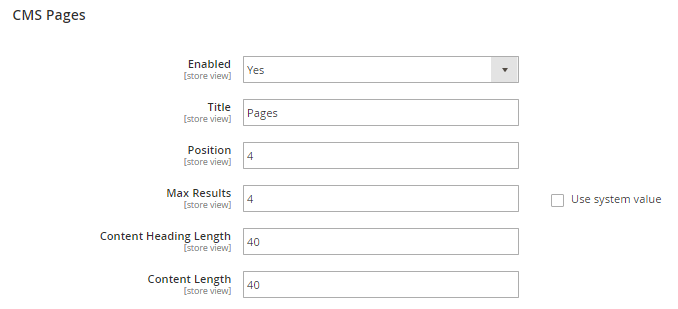

Enable search on CMS pages to provide customers with detailed search results.

Specify the Title, Position and the Max Results.

Also, set the maximal number of characters for Content Heading and Content that will be shown.

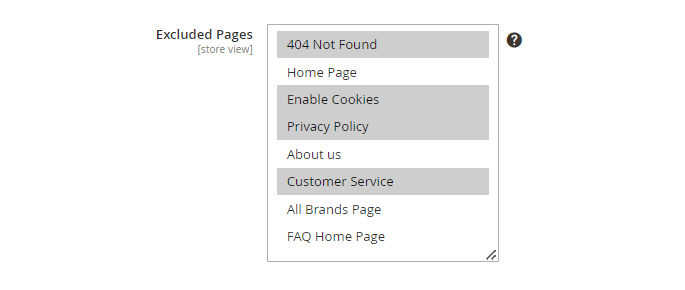

Excluded Pages - Select certain (or all) CMS pages from the list to exclude them from search result sources. These pages will not be searchable in the popup.

Enabled - Set 'Yes' to enable the 'Recently Viewed' widget in the autocomplete popup.

Title - In this field, you can specify a custom title for the widget.

Max Results - Here you can specify the max number of products to be displayed in the slider.

Enabled - Set 'Yes' to enable the 'Bestsellers' widget in the autocomplete popup.

Title - In this field, you can specify a custom title for the widget.

Position - If the widget 'Recently Viewed' is enabled, you can specify in which order these two widgets will be displayed (which one first).

Max Results - Here you can specify the max number of products to be displayed in the slider.

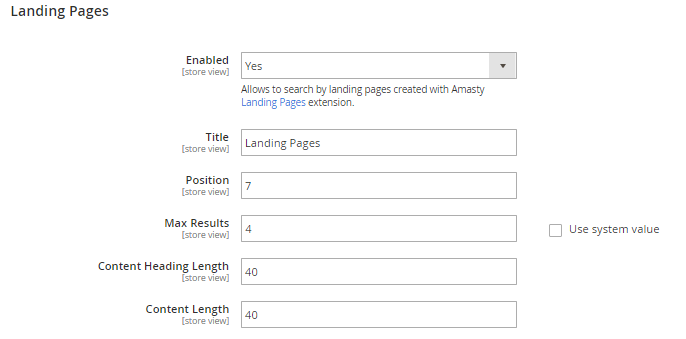

Enable search landing pages in the popup, specify the Title, Position and the Max Results. Set the maximal number of characters for Content Heading and Content that will be shown in the search popup.

Enable search FAQ pages in the popup, specify the Title, Position and the Max Results. Set the maximal number of characters for Content Heading and Content that will be shown in the search popup.

The Advanced Search extension is compatible with our Store Locator extension (the compatibility is available as a part of an active product subscription or support subscription). This means that if you have both modules installed, you can also search by store locations created with Amasty Store Locator extension.

Navigate to Advanced Search extension general settings to enable the compatibility.

Enable search by Store Locations in the popup, specify the Title, Position and the Max Results. Set the maximal number of characters for Content Heading and Content that will be shown in the search popup.

Here's an example of how this functionality may appear on the fronten:

After clicking on a specific store in the search popup, the customer will be redirected to the page of that store's location.

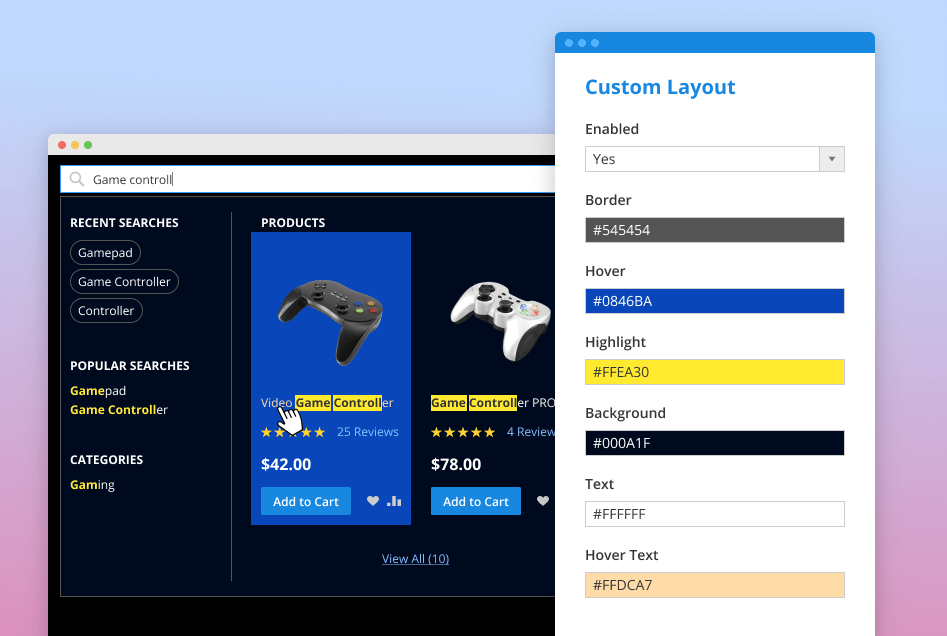

Enable this option to customize popup design.

Set colors for a Border, Hover, Highlight, Background, Text and Hover Text using convenient color picker tool.

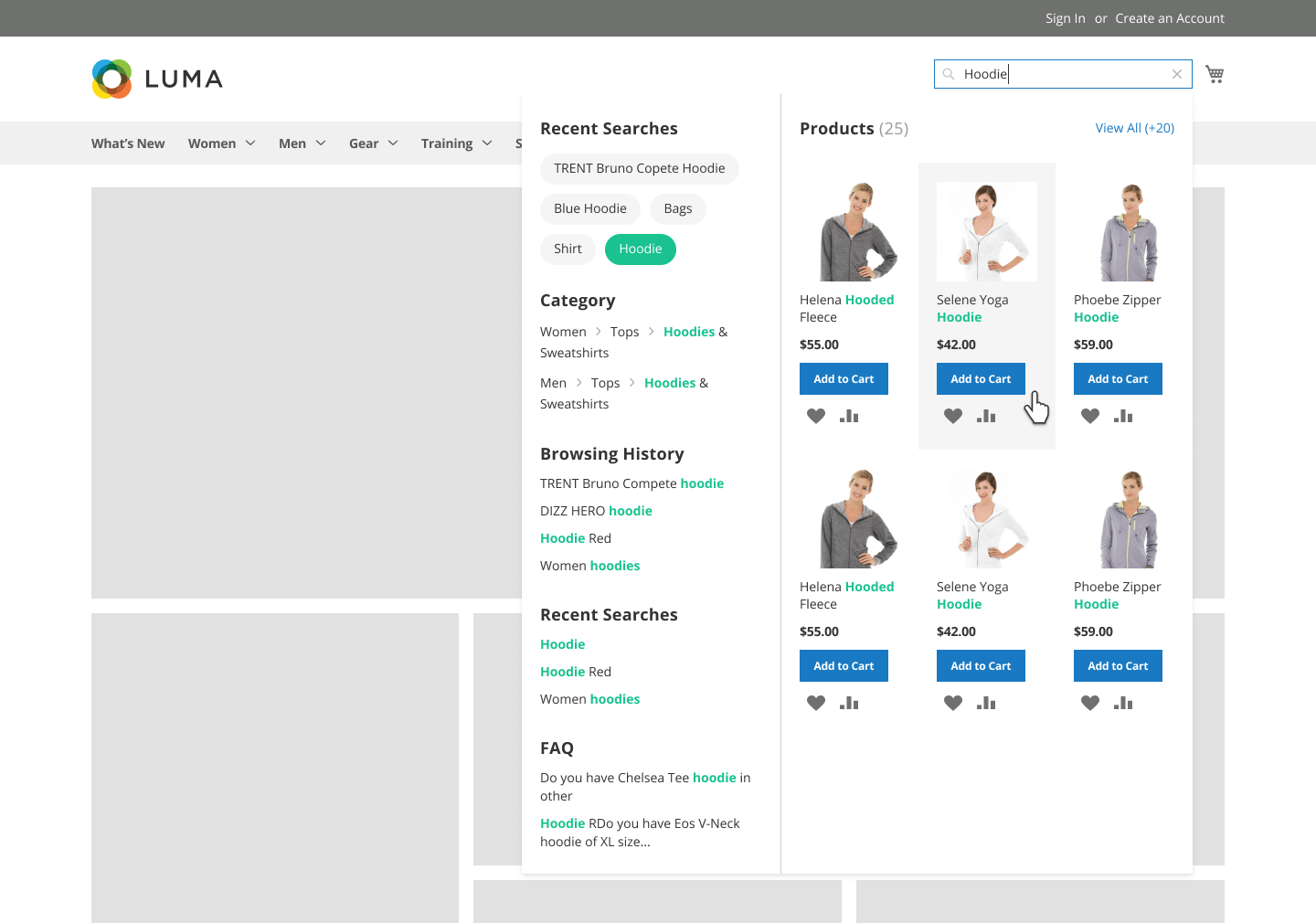

See custom layout example:

The Advanced Search extension allows to maximize profits by analyzing visitors' searching activity and the data gained.

To see the Search Analytics dashboards, go to Admin Panel → Reports → Search Analytics.

Here you can see the following values: total searches, unique searches, the number of users and users’ engagement. The Engagement statistics includes the page jumps to Brands, Categories, Blog, CMS & Landing pages.

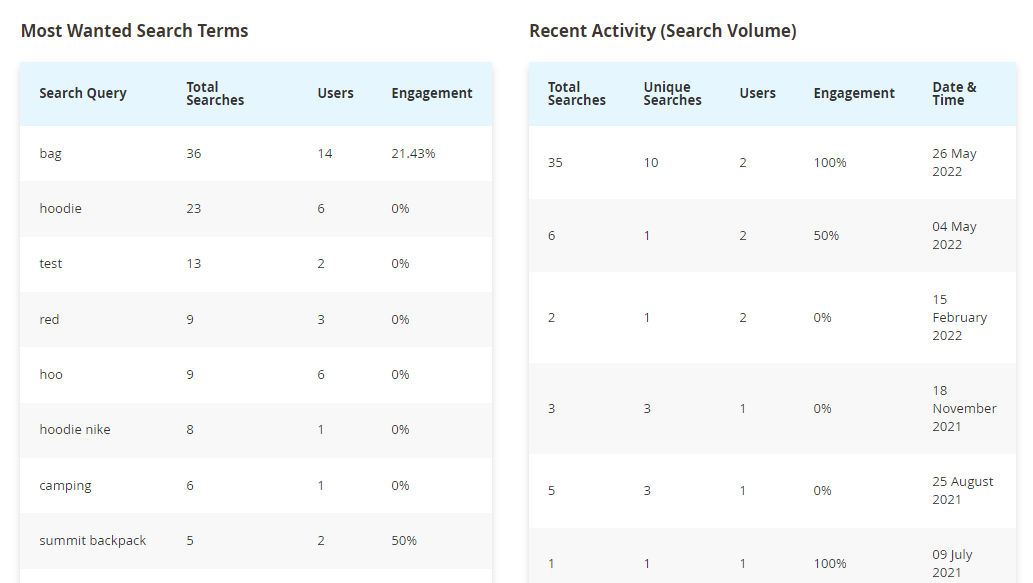

Easily check customers’ demand in the Most Wanted Search Terms and Recent Activity blocks. The extension automatically records the activity of users on the front end and converts it into reports on the back end.

Also in this report you can filter information by a specific period of time.

To see more details on Most Wanted Search Terms, go to Admin Panel → Reports → Most Wanted.

In this report, you can explore the most popular search queries, total searches of terms, the number of users who were searching for particular terms and engagement level. You can also filter the Most Wanted Search Terms report by date.

To see more details on customers' Recent Activities, go to Admin Panel → Reports → Recent Activity.

This extension lets store admins construct a seamless search flow with the related search terms. It is highly useful for customers, as it helps to navigate the store with relevant search suggestions.

Start by overseeing all search terms, that users created in the store by organically entering search requests in the autocomplete search window. To access it, please go to the Admin Panel → Reports → Search Terms.

Here, you can see how each search word performs. You can also export it in the CSV or Excel XML formats just in one click. Also, easily add new search terms or edit them.

Press on the required search term to modify it.

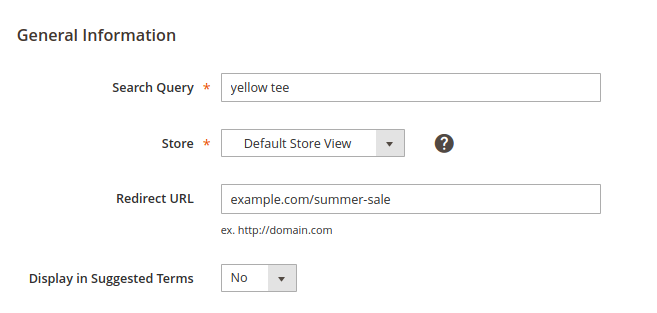

Here, the admin can adjust the general information and assign related terms.

Search Query - enter the search request a user needs to type into the search field.

Store - assign the store view for a specific keyword.

Number of Results - it specifies, how many search results will be returned.

Number of Uses - this number signifies how many times visitors have requested this specific search query.

Redirect URL - enter the URL you want to redirect users to when clicking on search results.

Display in Suggested Terms - set to Yes to show this search word in the Related Terms list for other search requests.

In the Related Terms table you'll get a list of all search terms that are enabled for display in suggested terms. Mark the necessary ones that match your goal by ticking the checkmark. This way, it will be much easier for a customer to navigate your store even if they've misspelled the search requests. Also, it's a great opportunity for a store owner to promote relevant searches that might be interesting for a customer and therefore motivate them to purchase in your store.

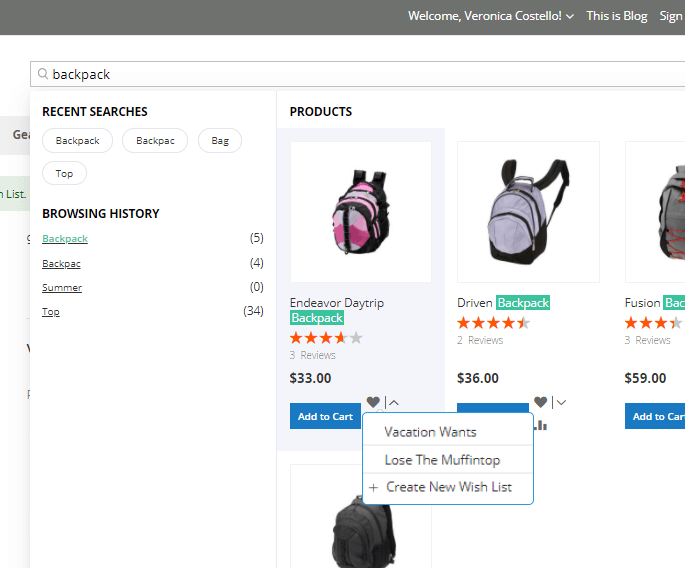

Provide customers with the ability to choose the wishlist where to save the product, right from the autocomplete popup.

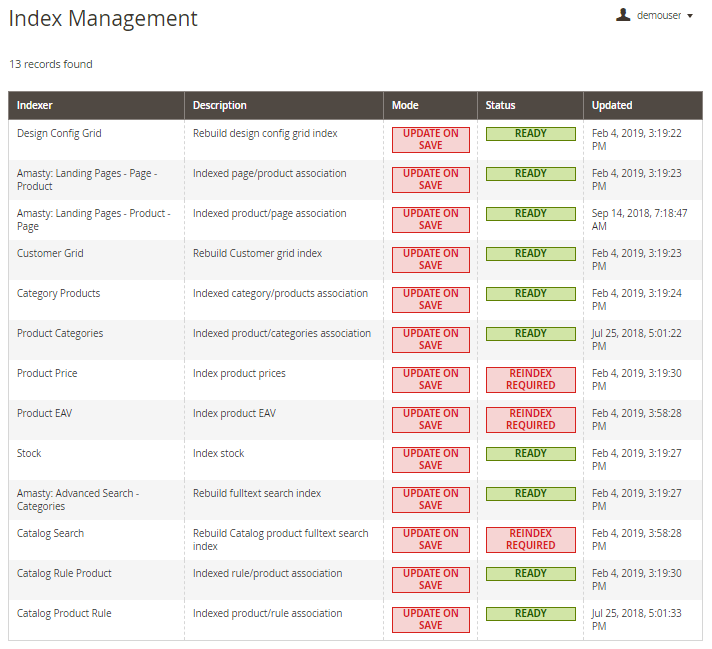

To reindex categories for correct search results, go to System → Tools → Index Management

To make additional functionality available, please install the suggested packages you may need.

Available for Basic, Pro and Premium tariff plans with no additional fees:

• amasty/module-elastic-search - Install module-elastic-search-graphql module to activate Graphql and Elastic Search.

Available as a part of an active product subscription or support subscription:

• amasty/module-elastic-search-graphql - Install amasty/module-elastic-search-graphql module to activate Graphql and Advanced Search integration.

For Basic, Pro and Premium versions:

• amasty/module-xsearch-hyva-compatibility - Install this package to insure Autocomplite popup works with Hyva Theme.

• amasty/module-search-rate-limiter - Install this package in order to use the DDos guard functionality.

• amasty/module-advanced-search-subscription-functionality - Install this package to set up the exclusion of categories from display in the search popup, add the ability to filter reports by date using the From - To functionality and search using the Product ID.

• amasty/module-advanced-search-multi-store - Install this package for Multi-Store Search compatibility.

Provide shoppers with an outstanding cross-device experience by implementing a ready-made PWA solution to your store. Allow customers to smoothly search and quickly find what they need using the Elastic Search extension in a combination with the PWA add-on.

If the add-on is installed, the autocomplete popup of the Elastic Search extension will look on Venia the following way:
