See the way the Lite Layered Navigation for Magento 2 extension works.

Guide for Lite Layered Navigation for Magento 2

Speed up the shopping process and reduce cart abandonment rate with Magento 2 Lite Layered Navigation extension. Provide your customers with advanced filtering experience and increase conversion.

  • Speed up filtering process with AJAX functionality
  • Activate multi-select option to make navigation convenient
  • Use the price slider to display only relevant items
  • Adjust mobile filtering with responsive navigation
  • Benefit from full responsive navigation and filtering
  • Compatible with built-in Magento and Amasty Elastic Search
This extension is now available as a full-featured integration for the Jet Theme by Amasty. Learn more here →

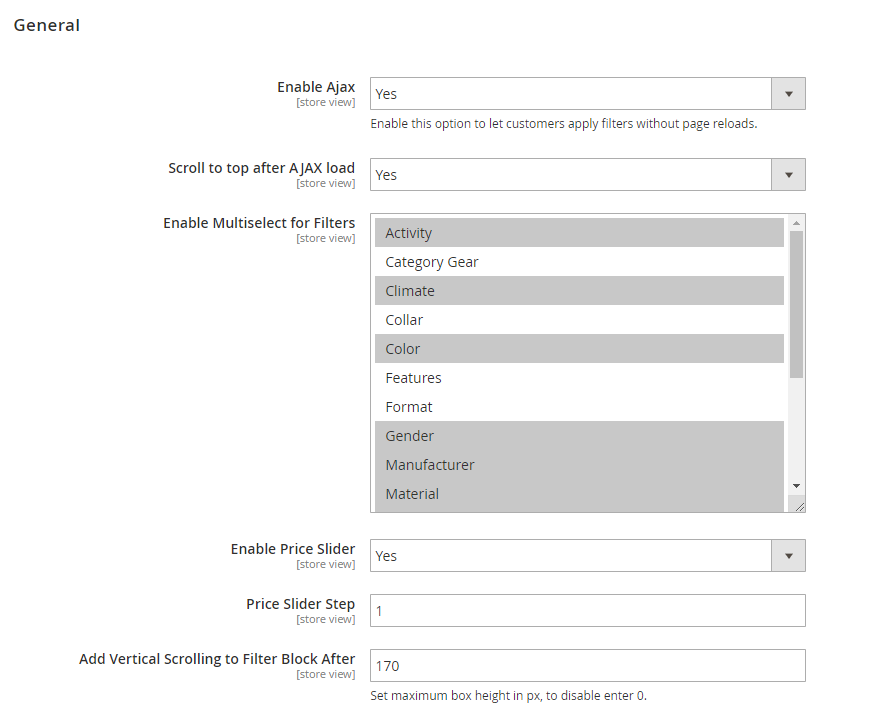

General Settings

To configure the extension, please go to Stores → Configuration → Amasty Extensions → Price Slider & Filters.

Enable AJAX - enable this option to let customers apply multiple filters without page reloads.

Scroll to top after AJAX load - set to Yes to automatically navigate customers to the page top after filtering.

Enable Multiselect for Filters - specify the filters for which a multiselect option will be allowed.

Enable Price Slider - select Yes to display a handy price slider on the frontend.

Price Slider Step - specify the interval that will be shown when a customer moves the slider, e.g. if this option is set to 10 and the starting value is 40, a user will be able to choose 40, 50, 60, etc. value as the initial or final price. If 1 is set, a customer will be able to choose the price of 41, 42, 43 and so on .

Add Vertical Scrolling to Filter Block After - specify maximal filter size (in pixels) that will be displayed without vertical scrolling. In case a filter is higher than the indicated size, the scrolling will appear. To disable scrolling, enter 0.

Advanced Options

Price Slider & Filters is the lite version of Magento 2 Improved Layered Navigation. Check our Pro version to add more options to your navigation system.

Frontend Examples

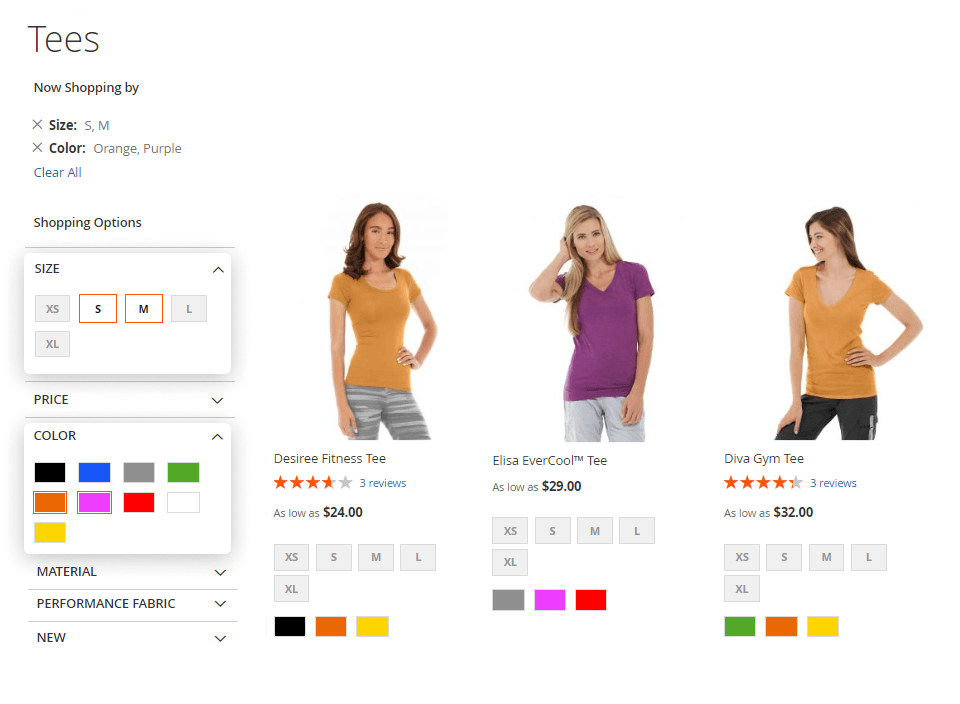

Grow the chance of making a purchase by letting users multiselect filter options.

Add a handy vertical scrolling to easily filter multiple values.

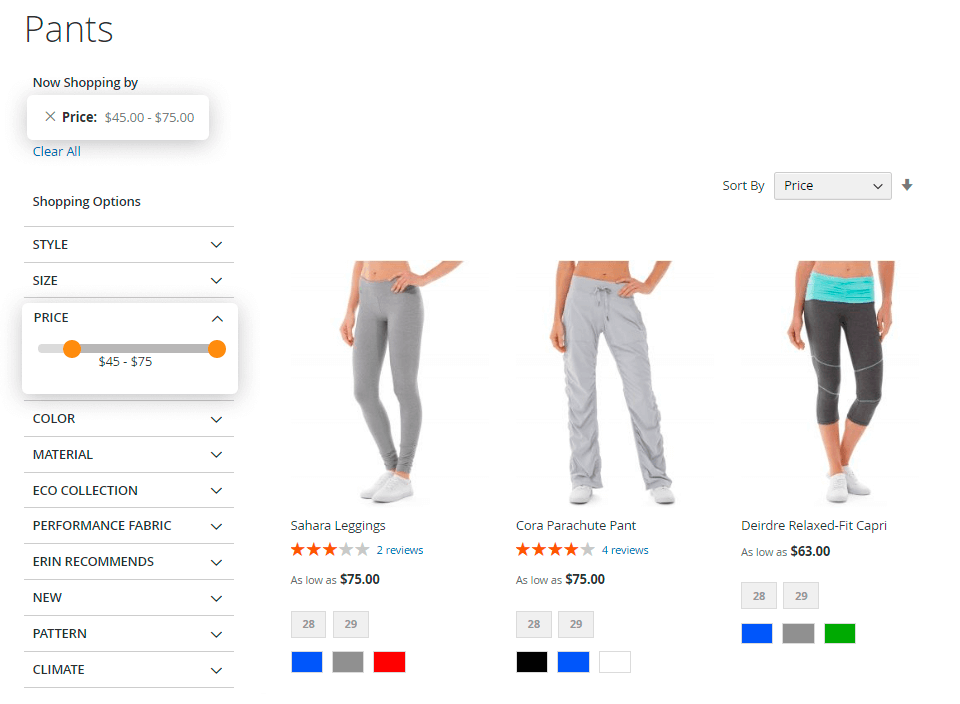

Show only relevant items with a price slider.

The extension is fully compatible with Amasty Elastic Search for Magento 2 extension.

Find out how to install the Lite Layered Navigation for Magento 2 via Composer.
